Omniifr::InterfaceDef_impl

Omniifr::InterfaceDef_impl Class Reference

#include <InterfaceDef.h>

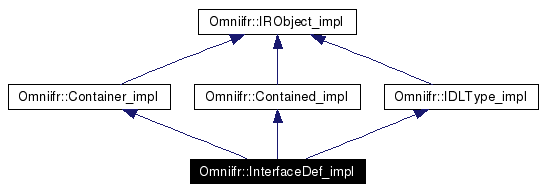

Inheritance diagram for Omniifr::InterfaceDef_impl:

Inheritance graph
[legend]

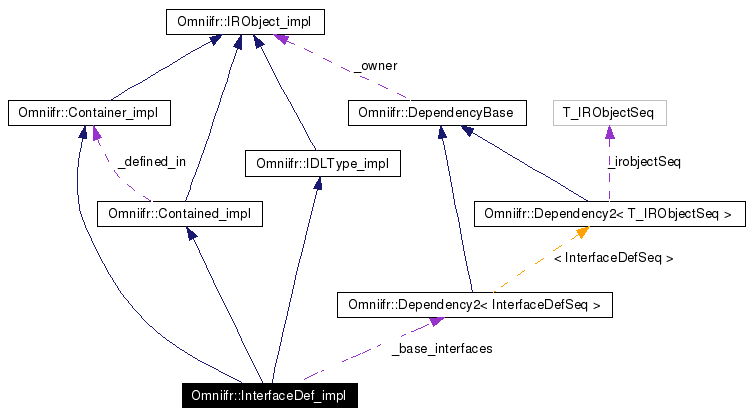

Collaboration diagram for Omniifr::InterfaceDef_impl:

Collaboration graph
[legend]
List of all members.

Public Member Functions

InterfaceDefSeq * base_interfaces ()
void base_interfaces (const InterfaceDefSeq &v)
Boolean is_a (const char *interface_id)
CORBA::InterfaceDef::FullInterfaceDescription * describe_interface ()
AttributeDef_ptr create_attribute (const char *id, const char *name, const char *version, IDLType_ptr type, AttributeMode mode)
OperationDef_ptr create_operation (const char *id, const char *name, const char *version, IDLType_ptr result, OperationMode mode, const ParDescriptionSeq &params, const ExceptionDefSeq &exceptions, const ContextIdSeq &contexts)
DefinitionKind def_kind ()
ContainedSeq * contents (DefinitionKind limit_type, Boolean exclude_inherited)
CORBA::Contained::Description * describe ()
TypeCode_ptr type ()
 InterfaceDef_impl ()
virtual ~InterfaceDef_impl ()
void uncheckedDestroy ()
 Destroys this object, without first checking for dependencies.
bool canContain (DefinitionKind kind)
 Returns TRUE if this Container_impl can contain type 'kind'.
void reincarnate (const PersistNode &node)
 Re-create the repository from information saved in the log file.
void output (ostream &os)
 Save this object's state to a stream.

Private Types

typedef set< string, NoCaseStringOrdering > NoCaseStrSet

Private Member Functions

RepositoryIdSeq baseInterfacesIds ()
 Obtain a RepositoryIdSeq from _base_interfaces.
void checkInheritedNameClash (const char *name)
 Helper method called by create_operation/attribute().
void interfaceSet (const InterfaceDefSeq &baseInterfaces, set< string > &repositoryIdSet, InterfaceDefSeq &allBaseInterfaces)
 Calculate the set of all unique interfaces from which baseInterfaces are derived.
NoCaseStrSet inheritedNameSet (const InterfaceDefSeq &baseInterfaces)
 Calculate the set of all attribute & operation names contained by 'baseInterfaces'.

Static Private Member Functions

static bool nameSetOk (const ContainedSeq &contents, NoCaseStrSet &result)
 Sets 'result' to the set union of 'result's initial value and the set of all contents[x]->name().

Private Attributes

Dependency2< InterfaceDefSeq > _base_interfaces

Classes

struct  NoCaseStringOrdering
 Comparison operator used by NoCaseStrSet. More...

Member Typedef Documentation

typedef set<string,NoCaseStringOrdering> Omniifr::InterfaceDef_impl::NoCaseStrSet [private]


Definition at line 106 of file InterfaceDef.h.

Constructor & Destructor Documentation

Omniifr::InterfaceDef_impl::InterfaceDef_impl (   )  [inline]


Definition at line 80 of file InterfaceDef.h.

References _base_interfaces.

00080 :_base_interfaces(this){}

virtual Omniifr::InterfaceDef_impl::~InterfaceDef_impl (   )  [inline, virtual]


Definition at line 81 of file InterfaceDef.h.

00081 {}

Member Function Documentation

void Omniifr::InterfaceDef_impl::base_interfaces (  const InterfaceDefSeq &  v  )


Definition at line 48 of file InterfaceDef.cc.

References _base_interfaces, Omniifr::Dependency2< T_IRObjectSeq >::assign(), Omniifr::IRObject_impl::checkReadonly(), contents(), DB, IFELSE_OMNIORB4, inheritedNameSet(), and nameSetOk().

00049 {
00050   checkReadonly();
00051   // Raise BAD_PARAM if the name of any object contained by this object
00052   // conflicts with the name of any object contained by any of the classes
00053   // in v.
00054
00055   NoCaseStrSet vNameSet =inheritedNameSet(v);
00056
00057   NoCaseStrSet myNameSet;
00058   {
00059     // ASSERT: There should never be a name clash within a container.
00060     ContainedSeq_var myAttributes=contents(dk_Attribute,1);
00061     ContainedSeq_var myOperations=contents(dk_Operation,1);
00062     assert( nameSetOk(myAttributes.in(),myNameSet) );
00063     assert( nameSetOk(myOperations.in(),myNameSet) );
00064   }
00065
00066   NoCaseStrSet conflictSet;
00067   set_intersection(
00068     vNameSet.begin(), vNameSet.end(),
00069     myNameSet.begin(),myNameSet.end(), inserter(conflictSet,conflictSet.end())
00070   );
00071
00072   // conflictSet contains conflicts between this->contents and inherited names.
00073   if(!conflictSet.empty())
00074   {
00075     string badNames="";
00076     for(NoCaseStrSet::const_iterator i=conflictSet.begin();
00077         i!=conflictSet.end();
00078         ++i)
00079     {
00080       badNames+=" \""+(*i)+"\"";
00081     }
00082     DB(1,"BAD_PARAM_InheritedNameClash. InterfaceDef \""<<_name<< \
00083       "\" base_interfaces() rejected duplicate names:"<<badNames.c_str()<<".")
00084     throw CORBA::BAD_PARAM(
00085       IFELSE_OMNIORB4(omni::BAD_PARAM_InheritedNameClash,5),
00086       CORBA::COMPLETED_NO
00087     );
00088   }
00089
00090   // Procede:
00091   _base_interfaces.assign(v); // May raise BAD_PARAM.
00092 }

InterfaceDefSeq * Omniifr::InterfaceDef_impl::base_interfaces (   )


Definition at line 42 of file InterfaceDef.cc.

References _base_interfaces, and Omniifr::Dependency2< T_IRObjectSeq >::copy().

00043 {
00044   return _base_interfaces.copy();
00045 }

RepositoryIdSeq Omniifr::InterfaceDef_impl::baseInterfacesIds (   )  [private]


Obtain a RepositoryIdSeq from _base_interfaces.

Definition at line 351 of file InterfaceDef.cc.

References _base_interfaces, and Omniifr::Dependency2< T_IRObjectSeq >::in().

Referenced by describe(), and describe_interface().

00352 {
00353   RepositoryIdSeq result;
00354   try
00355   {
00356     const InterfaceDefSeq& bis =_base_interfaces.in();
00357     result.length(bis.length());
00358     for(ULong i=0; i<bis.length(); ++i)
00359     {
00360       assert(!CORBA::is_nil(bis[i]));
00361       result[i]=bis[i]->id();
00362     }
00363   }
00364   catch(...)
00365   {
00366     result.length(0);
00367     throw;
00368   }
00369   return result;
00370 }

bool Omniifr::InterfaceDef_impl::canContain (  DefinitionKind  kind  )  [virtual]


Returns TRUE if this Container_impl can contain type 'kind'.

Legal relationships are defined in CORBA spec. section 10.4.4 "Structure and Navigation of the Interface Repository".

Implements Omniifr::Container_impl.

Definition at line 275 of file InterfaceDef.cc.

References CASE_TYPEDEF.

00276 {
00277   switch(kind)
00278   {
00279     CASE_TYPEDEF
00280     case dk_Constant:
00281     case dk_Exception:
00282     case dk_Operation:
00283     case dk_Attribute:
00284       return true;
00285     default:
00286       return false;
00287   }
00288 }

void Omniifr::InterfaceDef_impl::checkInheritedNameClash (  const char *  name  )  [private]


Helper method called by create_operation/attribute().

Checks that 'name' is a valid identifier, and does not clash with an inherited name. Throws BAD_PARAM if a problem is found.

Definition at line 373 of file InterfaceDef.cc.

References _base_interfaces, DB, IFELSE_OMNIORB4, Omniifr::Dependency2< T_IRObjectSeq >::in(), and inheritedNameSet().

Referenced by create_attribute(), and create_operation().

00374 {
00375   IdentifierUtil::checkInvalid(name);
00376
00377   NoCaseStrSet nameSet =inheritedNameSet(_base_interfaces.in());
00378
00379   if(nameSet.find(string(name))!=nameSet.end())
00380   {
00381     DB(1,"BAD_PARAM_InheritedNameClash. InterfaceDef \""<<_name.in()<< \
00382          "\" rejected duplicate name: \""<<name<<"\"")
00383     throw CORBA::BAD_PARAM(
00384       IFELSE_OMNIORB4(omni::BAD_PARAM_InheritedNameClash,5),
00385       CORBA::COMPLETED_NO
00386     );
00387   }
00388 }

ContainedSeq * Omniifr::InterfaceDef_impl::contents (  DefinitionKind  limit_type,
Boolean  exclude_inherited
)


Definition at line 201 of file InterfaceDef.cc.

References _base_interfaces, and Omniifr::Dependency2< T_IRObjectSeq >::in().

Referenced by base_interfaces(), describe_interface(), and nameSetOk().

00205 {
00206   ContainedSeq_var result =Container_impl::contents(limit_type,1);
00207
00208   // Add in inherited attributes & operations, if required.
00209   if( (!exclude_inherited) &&
00210         (limit_type==dk_all ||
00211          limit_type==dk_Operation ||
00212          limit_type==dk_Attribute))
00213   {
00214     const InterfaceDefSeq& bis=_base_interfaces.in();
00215     for(ULong i=0; i<bis.length(); ++i)
00216     {
00217       // result += inherited operations.
00218       if( limit_type==dk_all || limit_type==dk_Operation )
00219       {
00220         ContainedSeq_var opers =bis[i]->contents(dk_Operation,0);
00221         ULong offset=result->length();
00222         result->length( offset+opers->length() );
00223         for(ULong j=0; j<opers->length(); ++j)
00224             result[offset+j]=opers[j]._retn();
00225       }
00226       // result += inherited attributes.
00227       if( limit_type==dk_all || limit_type==dk_Operation )
00228       {
00229         ContainedSeq_var attrs =bis[i]->contents(dk_Attribute,0);
00230         ULong offset=result->length();
00231         result->length( offset+attrs->length() );
00232         for(ULong k=0; k<attrs->length(); ++k)
00233             result[offset+k]=attrs[k]._retn();
00234       }
00235     }
00236   }
00237
00238   return result._retn();
00239 }

AttributeDef_ptr Omniifr::InterfaceDef_impl::create_attribute (  const char *  id,
const char *  name,
const char *  version,
IDLType_ptr  type,
AttributeMode  mode
)


Definition at line 153 of file InterfaceDef.cc.

References checkInheritedNameClash(), Omniifr::IRObject_impl::checkReadonly(), DB, and Omniifr::Creche< T >::release().

00160 {
00161   DB(5,"InterfaceDef::create_attribute("<<id<<","<<name<<","<<version<<",...)")
00162   checkReadonly();
00163   checkInheritedNameClash(name);
00164
00165   // Create the attribute.
00166   Creche<AttributeDef_impl> newattribute(new AttributeDef_impl());
00167   newattribute->init(id,name,version,this);
00168   newattribute->mode(mode);
00169   newattribute->type_def(type);
00170   return newattribute.release()->_this();
00171 }

OperationDef_ptr Omniifr::InterfaceDef_impl::create_operation (  const char *  id,
const char *  name,
const char *  version,
IDLType_ptr  result,
OperationMode  mode,
const ParDescriptionSeq &  params,
const ExceptionDefSeq &  exceptions,
const ContextIdSeq &  contexts
)


Definition at line 174 of file InterfaceDef.cc.

References checkInheritedNameClash(), Omniifr::IRObject_impl::checkReadonly(), DB, and Omniifr::Creche< T >::release().

00184 {
00185   DB(5,"InterfaceDef::create_operation("<<id<<","<<name<<","<<version<<",...)")
00186   checkReadonly();
00187   checkInheritedNameClash(name);
00188
00189   // Create the operation.
00190   Creche<OperationDef_impl> newoperation(new OperationDef_impl());
00191   newoperation->init(id,name,version,this);
00192   newoperation->mode(mode);
00193   newoperation->contexts(contexts);
00194   newoperation->result_def(result);
00195   newoperation->params(params);
00196   newoperation->exceptions(exceptions);
00197   return newoperation.release()->_this();
00198 }

DefinitionKind Omniifr::InterfaceDef_impl::def_kind (   )  [inline, virtual]


Implements Omniifr::IRObject_impl.

Definition at line 68 of file InterfaceDef.h.

Referenced by describe().

00068 {return CORBA::dk_Interface;}

CORBA::Contained::Description * Omniifr::InterfaceDef_impl::describe (   )  [virtual]


Implements Omniifr::Contained_impl.

Definition at line 242 of file InterfaceDef.cc.

References baseInterfacesIds(), def_kind(), Omniifr::Contained_impl::definedInId(), Omniifr::Contained_impl::id(), Omniifr::Contained_impl::name(), and Omniifr::Contained_impl::version().

00243 {
00244   InterfaceDescription_var interfacedesc = new InterfaceDescription();
00245   interfacedesc->name           =name();
00246   interfacedesc->id             =id();
00247   interfacedesc->version        =version();
00248   interfacedesc->base_interfaces=baseInterfacesIds();
00249   interfacedesc->defined_in     =definedInId();
00250
00251   CORBA::Contained::Description_var description =
00252       new CORBA::Contained::Description();
00253   description->kind  =   def_kind();
00254   description->value <<= interfacedesc._retn();
00255
00256   return description._retn();
00257 }

CORBA::InterfaceDef::FullInterfaceDescription * Omniifr::InterfaceDef_impl::describe_interface (   )


Definition at line 117 of file InterfaceDef.cc.

References baseInterfacesIds(), contents(), Omniifr::Contained_impl::definedInId(), Omniifr::Contained_impl::id(), Omniifr::Contained_impl::name(), type(), and Omniifr::Contained_impl::version().

00118 {
00119   CORBA::InterfaceDef::FullInterfaceDescription_var result =
00120       new CORBA::InterfaceDef::FullInterfaceDescription();
00121   result->name            =name();
00122   result->id              =id();
00123   result->defined_in      =definedInId();
00124   result->version         =version();
00125
00126   ContainedSeq_var containedseq =contents(dk_Operation,false);
00127   result->operations.length(containedseq->length());
00128   for(ULong i=0; i < containedseq->length(); i++ )
00129   {
00130     CORBA::Contained::Description_var description=containedseq[i]->describe();
00131     const OperationDescription* operation;
00132     description->value >>= operation;   // Any still owns memory
00133     result->operations[i] = *operation; // deep copy
00134   }
00135
00136   containedseq=contents(dk_Attribute,false);
00137   result->attributes.length(containedseq->length());
00138   for(ULong j=0; j<containedseq->length(); j++)
00139   {
00140     CORBA::Contained::Description_var description=containedseq[j]->describe();
00141     const AttributeDescription* attribute;
00142     description->value >>= attribute;   // Any still owns memory
00143     result->attributes[j] = *attribute; // deep copy
00144   }
00145
00146   result->base_interfaces =baseInterfacesIds();
00147   result->type            =type();
00148
00149   return result._retn();
00150 }

InterfaceDef_impl::NoCaseStrSet Omniifr::InterfaceDef_impl::inheritedNameSet (  const InterfaceDefSeq &  baseInterfaces  )  [inline, private]


Calculate the set of all attribute & operation names contained by 'baseInterfaces'.

Throws BAD_PARAM(InheritedNameClash) if a duplicate is found.

Definition at line 417 of file InterfaceDef.cc.

References DB, IFELSE_OMNIORB4, interfaceSet(), and nameSetOk().

Referenced by base_interfaces(), and checkInheritedNameClash().

00420 {
00421   // Find all base interfaces, including indirectly inherited ones.
00422   set<string> ridSet;
00423   InterfaceDefSeq allBaseInterfaces;
00424   interfaceSet(baseInterfaces,ridSet,allBaseInterfaces);
00425
00426   NoCaseStrSet result;
00427   for(ULong i=0; i<allBaseInterfaces.length(); ++i)
00428   {
00429     // ?? Catch COMMS / TRANSIENT errors here? Translate into BAD_PARAM?
00430     bool ok =true;
00431     ContainedSeq_var iAttrs =allBaseInterfaces[i]->contents(dk_Attribute,1);
00432     ContainedSeq_var iOpers =allBaseInterfaces[i]->contents(dk_Operation,1);
00433     ok=ok&&( nameSetOk(iAttrs.in(),result) );
00434     ok=ok&&( nameSetOk(iOpers.in(),result) );
00435     if(!ok) // Conflict amongst base interfaces
00436     {
00437       string baseIntNames ="";
00438       for(set<string>::const_iterator j=ridSet.begin(); j!=ridSet.end(); ++j)
00439       {
00440         baseIntNames+=" \""+(*j)+"\"";
00441       }
00442       DB(1,"BAD_PARAM_InheritedNameClash. InterfaceDef \""<<_name.in()<< \
00443         "\" detected conflict amongst base interfaces:"<<baseIntNames.c_str()<<".")
00444       throw CORBA::BAD_PARAM(
00445         IFELSE_OMNIORB4(omni::BAD_PARAM_InheritedNameClash,5),
00446         CORBA::COMPLETED_NO
00447       );
00448     }
00449   }
00450   return result;
00451 }

void Omniifr::InterfaceDef_impl::interfaceSet (  const InterfaceDefSeq &  baseInterfaces,
set< string > &  repositoryIdSet,
InterfaceDefSeq &  allBaseInterfaces
)  [private]


Calculate the set of all unique interfaces from which baseInterfaces are derived.

Definition at line 391 of file InterfaceDef.cc.

Referenced by inheritedNameSet().

00396 {
00397   for(ULong i=0; i<baseInterfaces.length(); ++i)
00398   {
00399     String_var iName =baseInterfaces[i]->name();
00400     if(repositoryIdSet.find(string(iName.in()))==repositoryIdSet.end())
00401     {
00402       // This approach is inefficient when the sequence length might be large,
00403       // but for this case, it's OK.
00404       ULong len =repositoryIdSet.size();
00405       allBaseInterfaces.length(1+len);
00406       allBaseInterfaces[len]=CORBA::InterfaceDef::_duplicate(baseInterfaces[i]);
00407       repositoryIdSet.insert(string(iName.in()));
00408       // Now add in more distant ancestors.
00409       InterfaceDefSeq_var ancestors =baseInterfaces[i]->base_interfaces();
00410       interfaceSet(ancestors.in(),repositoryIdSet,allBaseInterfaces);
00411     }
00412   }
00413 }

Boolean Omniifr::InterfaceDef_impl::is_a (  const char *  interface_id  )


Definition at line 95 of file InterfaceDef.cc.

References _base_interfaces, and Omniifr::Dependency2< T_IRObjectSeq >::in().

00096 {
00097   assert(interface_id);
00098
00099   if(strcmp(interface_id,"IDL:omg.org/CORBA/Object:1.0")==0)
00100       return true;
00101
00102   if(strcmp(interface_id,_id.in())==0) // itself
00103       return true;
00104
00105   const InterfaceDefSeq& bis =_base_interfaces.in();
00106   for(ULong i=0; i<bis.length(); i++)
00107   {
00108     assert(!CORBA::is_nil(bis[i]));
00109     if(bis[i]->is_a(interface_id))
00110         return true;
00111   }
00112   return false;
00113 }

bool Omniifr::InterfaceDef_impl::nameSetOk (  const ContainedSeq &  contents,
NoCaseStrSet &  result
)  [inline, static, private]


Sets 'result' to the set union of 'result's initial value and the set of all contents[x]->name().

Returns FALSE if a duplicate is found.

Definition at line 454 of file InterfaceDef.cc.

References contents(), and DB.

Referenced by base_interfaces(), and inheritedNameSet().

00458 {
00459   bool ok =true;
00460   for(ULong i=0; i<contents.length(); ++i)
00461   {
00462     CORBA::String_var iName =contents[i]->name();
00463     if(!result.insert(iName.in()).second)
00464     {
00465       DB(5,"Name clash: \""<<iName.in()<<"\"")
00466       ok=false; // Name clash detected.
00467     }
00468   }
00469   return ok;
00470 }

void Omniifr::InterfaceDef_impl::output (  ostream &  os  )  [virtual]


Save this object's state to a stream.

Implements Omniifr::IRObject_impl.

Definition at line 340 of file InterfaceDef.cc.

References _base_interfaces, Omniifr::Dependency2< T_IRObjectSeq >::in(), Omniifr::Container_impl::outputContents(), and Omniifr::Contained_impl::outputSelf().

00341 {
00342   outputSelf(os,"InterfaceDef");
00343   cdrMemoryStream memstr(CORBA::ULong(0),CORBA::Boolean(1)/*clearMemory*/);
00344   _base_interfaces.in()>>=memstr;
00345   PersistNode::outputCdrMemoryStream(os,memstr,"\n state=");
00346   os<<" ;;\n";
00347   outputContents(os);
00348 }

void Omniifr::InterfaceDef_impl::reincarnate (  const PersistNode &  node  )  [virtual]


Re-create the repository from information saved in the log file.

Reimplemented from Omniifr::IRObject_impl.

Definition at line 291 of file InterfaceDef.cc.

References _base_interfaces, Omniifr::Dependency2< T_IRObjectSeq >::assign(), DB, and Omniifr::Creche< T >::release().

00292 {
00293   // Reincarnate ths object.
00294   cdrMemoryStream memstr =node.attrCdrStream("state");
00295   InterfaceDefSeq b;
00296   b<<=memstr;
00297   _base_interfaces.assign(b);
00298
00299   // Reincarnate contained objects.
00300   // Compare the implementation of Container_impl::recreate()
00301   // Note that there is no need to defer complete reincarnation of these
00302   // contained object, because they can never be the object of a link from
00303   // elsewhere in the hierarchy. (Operations and Attributes can never be
00304   // referred to by another part of the IDL.)
00305   for(map<string,PersistNode*>::const_iterator i =node._child.begin();
00306                                                i!=node._child.end();
00307                                              ++i)
00308   {
00309     const string iOid     =i->second->attrString("oid");
00310     const string iId      =i->second->attrString("id");
00311     const string iVersion =i->second->attrString("version");
00312     const string iClass   =i->second->attrString("class");
00313     const int    iIndex   =i->second->attrLong("index");
00314     if(iOid.empty() || iId.empty() || iVersion.empty() || iClass.empty())
00315     {
00316       DB(1,"InterfaceDef_impl::reincarnate(): "
00317            "expected 'Contained' type child node.")
00318       i->second->output(cerr,i->first);
00319       continue;
00320     }
00321     // OK
00322     if("AttributeDef"==iClass)
00323     {
00324       Creche<AttributeDef_impl> servant(new AttributeDef_impl());
00325       servant->init(iId.c_str(),i->first.c_str(),iVersion.c_str(),this,iIndex);
00326       servant->reincarnate(*i->second);
00327       servant.release(iOid.c_str());
00328     }
00329     else if("OperationDef"==iClass)
00330     {
00331       Creche<OperationDef_impl> servant(new OperationDef_impl());
00332       servant->init(iId.c_str(),i->first.c_str(),iVersion.c_str(),this,iIndex);
00333       servant->reincarnate(*i->second);
00334       servant.release(iOid.c_str());
00335     }
00336   } // end for(i)
00337 } // end InterfaceDef_impl::reincarnate()

TypeCode_ptr Omniifr::InterfaceDef_impl::type (   )  [virtual]


Implements Omniifr::IDLType_impl.

Definition at line 260 of file InterfaceDef.cc.

Referenced by describe_interface().

00261 {
00262   return Repository_impl::inst()._orb
00263          ->create_interface_tc(_id.in(),_name.in());
00264 }

void Omniifr::InterfaceDef_impl::uncheckedDestroy (   )  [virtual]


Destroys this object, without first checking for dependencies.

Implements Omniifr::Contained_impl.

Definition at line 267 of file InterfaceDef.cc.

References _base_interfaces, and Omniifr::Dependency2< T_IRObjectSeq >::clear().

00268 {
00269   _base_interfaces.clear();
00270   Contained_impl::uncheckedDestroy(); // superclass
00271   Container_impl::uncheckedDestroy(); // superclass
00272 }

Member Data Documentation

Dependency2<InterfaceDefSeq> Omniifr::InterfaceDef_impl::_base_interfaces [private]


Definition at line 77 of file InterfaceDef.h.

Referenced by base_interfaces(), baseInterfacesIds(), checkInheritedNameClash(), contents(), InterfaceDef_impl(), is_a(), output(), reincarnate(), and uncheckedDestroy().

The documentation for this class was generated from the following files:
Generated on Fri Mar 4 13:04:03 2005 for OmniIFR by  doxygen 1.4.1
